ZP 15 17E

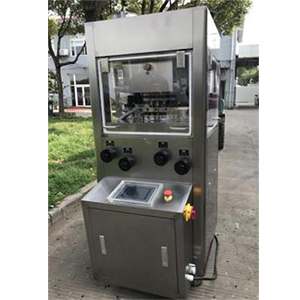

The machine is a single-pressing and continuous automatic tablet press for pressing granular raw materials into various round and special shaped tablets. It is mainly used in electronic, food, daily commodities, pharmaceutical, chemical and other industries. Machine fully-enclosed by stainless steel. The turret surface is specially processed. It could prevent cross pollution. And machine according to GMP requirements. This machine equipped with transparent window which could help to observe the status of pressing. Transparent window could be fully opened, machine easy to clean and maintain. .
This machine with such features as high pressure, wide tablet range and being able to press various round , special shaped and ring shaped tablets. Especially suitable for variety, small batch production. With mechanical-electrical integration, all controllers and regulating devices are centralized at on side of the machine, easy to maintain. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically. The transmission mechanism with oil immersion lubrication is closed under the body of the machine, extended service life and prevent cross pollution. Mould is generally same with ZP17 tablet press.
Technique Parameters:
Type | ZPE15 | ZPE17 |
Dies (sets) | 15 | 17 |
Max. Pressure (KN) | 60 | 60 |
Max. dia. of tablet (mm) | 20 | 18 |
Max. Depth of fill (mm) | 17 | 17 |
Thickness of largest tablet (mm) | 7 | 7 |
Turret speed (r/min) | 34 | 34 |
Production capacity (pc/h) | 30600 | 34680 |
Motor (kW) | 3 | 3 |
Net weight (kg) | 700 | 700 |
Overall Size(mm) | 900*650*1800 | 900*650*1800 |
Welcome international sales agents to cooperate with us.
