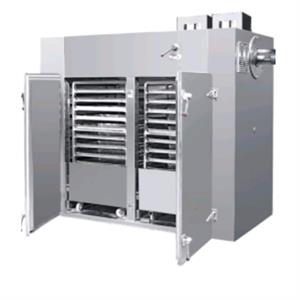

Hot Air Circulation Oven

Home » Products » Hot Air Circulation Oven

Principle of RXH Hot Air Circulation Oven:
The RXH hot air circulation oven's air circulation system adopts the blower recycling wind pattern which is highly efficient. The wind source, sent out by recycling wind motors (contactless switch), activates the wind wheel after passing the heater, and then sends out hot wind. Afterwards, it reaches the inner chamber of hot air circulation oven through the whirl tube and then absorbs the used air into the whirl tube as the recycled wind source, waiting to be used again and ensure the even chamber temperature. When the switch's movement causes the temperature fluctuation, the wind recycling system will quickly restore its operational state until the temperature arrives at the set one.

Application of RXH Hot Air Circulation Oven:
Our RXH hot air circulation oven is used for baking chemical gases or the foods waiting to be baked, solidifying printing ink, and drying the paint film. It is widely used for precise baking, drying, tempering, warming-up, finalizing the design and processing in the industries like electronics, electrical motors, telecommunications, plating, plastics, metals and chemicals, equipment, printing, pharmacy, PC board, powder, spray finishing, glass and timber building materials. The materials being baked are heated evenly thanks to the inner heat recycling.

Structure of RXH Hot Air Circulation Oven:
RXH hot air circulation oven is made of angle iron, stainless plate and cold steel. The insulating course is filled with high-density aluminum silicate cotton which can ensure the insulation of the oven and the safety of its user. The heater can be installed at the bottom, the top or on the two sides. The temperature is controlled by digital display intelligent meter. RXH hot air circulation oven's whirl tube can send wind both vertically and horizontally.

Features of RXH Hot Air Circulation Oven:
1. The hot wind is recycled inside the oven, a high thermal efficiency, and energy conservative.
2. Use forced draft ventilation, a whirl tube within the oven, the substance dry and even.
3. Our hot air circulation oven runs stably. It has automatically controlled temperature. It is easy to maintain.
4. It applies to a wide range of substance, an ideal piece of drying equipment.

Technique Parameter:

Model	RXH-5-C	RXH-14-C	RXH-27-C
Old type	CT-0	CT-C-I	CT-C-II
Dry Qty(KG)	25	100	200
Power (KW)	0.45	0.45	0.9
Steam consumption(kg/h)	5	18	36
Wind power(cubic meters/h)	3400	3400	6900
Temperature difference(degree)	±2°C	±2°C	±2°C
Plate(pieces)	24	48	96
Overall size(mm)	1550×1000×2290	2300×1200×2300	2300×2200×2300
Type	A truck of single door	Two trucks of two doors	Four trucks of two doors
Net weight(kg)	600	1000	1600
Gross weight(kg)	850	1350	1350

Model	RXH-41-C	RXH-54-C
Old type	CT-C-III	CT-C-IV
Dry Qty(KG)	300	400
Power (KW)	1.35	1.8
Steam consumption(kg/h)	54	72
Wind power(cubic meters/h)	10350	13800
Temperature difference(degree)	±2°C	±2°C
Plate(pieces)	144	192
Overall size(mm)	2300×3200×2300	4460×2200×2290
Type	Six trucks of three doors	Eight trucks of four doors
Net weight(kg)	2200	2900
Gross weight(kg)	2750	3700

We are a professional hot air circulation oven manufacturer in China. We have gained the recognition of a large number of clients through our 20 years' production experience and 15 years' marketing and serving experience, and meanwhile we have accumulated abundant experience in terms of products. At the same time, we keep researching hot air circulation oven that can better meet the clients' needs and the market. Located in Shanghai, the biggest port city of China, we are provided with convenient transportations of any kind, by land, sea or air, which will greatly reduce your transportation cost. If you need hot air circulation oven, please contact us.
