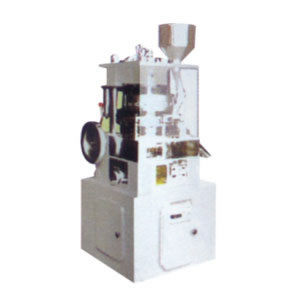

Pill Press Machine
The pill tablet press is a kind of machinery that presses dried granular or powder substance into tablets by moulds.
1. Single punch pill compression machine is a type of pill press machine with one set of moulds that make repeated and vertical movements.
2. Rotary pill tablet press is a type of pill press machine that are composed of several sets of moulds located equably on the rotating table which make repeated and vertical movements along certain path.
3. High speed rotary pill compression machine is a type of pill press machine of which the moulds' axes rotates along with the rotating table at the linear velocity no less than 60m/min.
Principle of Pill Press Machine
1. The dose control
Different tablets have their respective requirements of dose. The large dose adjustment is achieved through the choice of dies with different former punches. When the size of dies is decided, the tiny dose adjustment is done through the change of the depth the undershoot penetrates into the middle die hole so as to alter the actual length of the middle die hole after sealing the bottom. In this way, the filling volume of medicine into the die holes is changed. Therefore, a mechanism is needed on the pill press machine to adjust the original position of undershoots in the die holes in order to satisfy the need of does adjustment.
2. The control f tablets' thickness and level of pressing
The medicine's dose can not be changed because it is decided by the prescription and pharmacopeia. For the sake of storage, preservation, disintegration time limitation, there is a demand for the pressure on pressing. It will also affect the actual thickness and appearance of tablets. As a result, the pressure adjustment is necessary, which is realized by adjusting the downlink level of uprush in the mould holes. Some pill press machines not only have downlink movements upward, but also uplink movements downward during the pressing process. They together accomplish the pressing. However, the pressure adjustment is achieved through the mechanism which adapts the uplink and downlink level.
With the development of market demands, pill press machines are more and more widely used. They are no longer confined to pressing medicine tablets, instead, they can be used for pressing health food, veterinary tablets, chemical tablets (camphor ball, detergent block, art powder block, pesticides tablets), food tablets (radix block, tea block, hard tack) and so on.
Tianfeng Pharmaceutical is a professional manufacturer and supplier of pill press machines in China. We provide single punch pill tablet press, rotary pill compression machine, and high speed rotary pill press machine. We have gained the recognition of a large number of clients through our 20 years' production experience and 15 years' marketing and serving experience, and meanwhile we have accumulated abundant experience in terms of products. At the same time, we keep new products that can better meet the clients' needs and the market. Our products have been exported to South America, Africa, East Europe, Southeast Asia, and Middle East. We have clients in Mexico, Argentina, Brazil, Russia, Algeria, Morocco, South Africa, Malaysia, Thailand, and Pakistan. Our company is located in Songjiang District, Shanghai, which allows us to boast a unique production advantage and convenient transportation. If you need pill compression machine, please contact us. We can also make the products according to your specific requirements.
Welcome international sales agents to cooperate with us.
